Connector Options
Ultraplate Black
WBT-0114
WBT-0102 Cu
WBT-0102 Ag
XLR
Basic Electrical Specifications
Hero Ag
DUT: Hero Ag 1m terminated with WBT-0102 Ag RCA type connectors.
| (Cp) parallel capacitance: | 52.8 pF @ 20 kHz |
| (Ls) series inductance: | 0.499 µH @ 20 kHz |
| (Rdc) dc loop resistance: | 0.042 Ω |
| (Xt) total reactance: | 0.0476 Ω @ 20 kHz |
| Frequency response ± 0.5 dB dc - 8 MHz | |
Hero Ag Balanced
DUT: Hero Ag 1m terminated with XLR type connectors.
| (Cp) parallel capacitance: | 45.70 pF @ 20 kHz |
| (Ls) series inductance: | 1.01 µH @ 20 kHz |
| (Rdc) dc loop resistance: | 0.0836 Ω |
| (Xt) total reactance: | 0.128 Ω @ 20 kHz |
| Frequency response ± 0.5 dB dc - 3 MHz | |

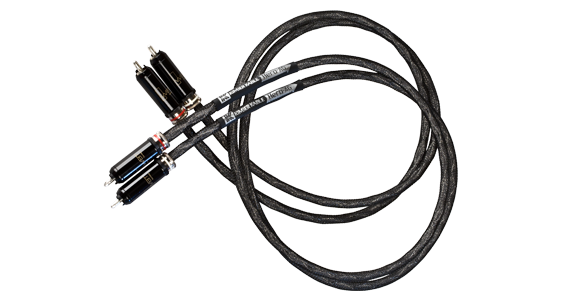

Hero Ag
An analog interconnect based on proven Kimber Kable technologies and design goals. Features include our unique GyroQuadratic™ field geometry, VariStrand™, Hyper-pure silver conductors and Dual fluorocarbon insulating technology. Hero draws you into the music by correctly presenting the harmonic structure and emotion of the actual performance, as well as giving you holographic imaging, detail and bass impact. Hero single-ended features precision machined WBT® RCA type connectors. Hero Balanced features "studio grade" XLR type connectors with silver plated contacts.
