Connector Options
Ultraplate Black
WBT-0114
WBT-0102 Cu
WBT-0102 Ag
XLR
Basic Electrical Specifications
Hero HB
DUT: Hero HB 1m terminated with WBT-0102 Cu RCA type connectors.
| (Cp) parallel capacitance: | 73.3 pF @ 20 kHz |
| (Ls) series inductance: | 0.382 µH @ 20 kHz |
| (Rdc) dc loop resistance: | 0.0388 Ω |
| (Xt) total reactance: | 0.0476 Ω @ 20 kHz |
| Frequency response ± 0.5 dB dc - 8 MHz | |
Hero HB Balanced
DUT: Hero HB 1m terminated with XLR type connectors.
| (Cp) parallel capacitance: | 45.70 pF @ 20 kHz |
| (Ls) series inductance: | 1.01 µH @ 20 kHz |
| (Rdc) dc loop resistance: | 0.0836 Ω |
| (Xt) total reactance: | 0.128 Ω @ 20 kHz |
| Frequency response ± 0.5 dB dc - 3 MHz | |

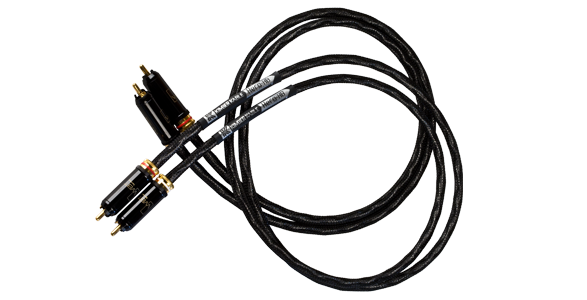

Hero HB
An analog interconnect based on proven Kimber Kable technologies and design goals. Features include our unique GyroQuadratic™ field geometry, VariStrand™, Hyper-pure copper and silver conductors and Dual fluorocarbon insulating technology. Hero draws you into the music by correctly presenting the harmonic structure and emotion of the actual performance, as well as giving you holographic imaging, detail and bass impact. Hero single-ended features precision machined WBT® RCA type connectors. Hero Balanced features "studio grade" XLR type connectors with silver plated contacts.
