4PR

Connector Options

  • SpadeSpade
  • SBANSBAN
  • Postmaster 25Postmaster 25
  • Postmaster 33Postmaster 33
  • Postmaster N3Postmaster N3

Basic Electrical Specifications

4PR

DUT: 4PR 2.5m bare wire ends.

(Cp) parallel capacitance: 312.0 pF @ 20 kHz
(Ls) series inductance: 0.654 µH @ 20 kHz
(Rdc) dc loop resistance: 0.041 Ω
(Xt) total reactance: 0.0825 Ω @ 20 kHz
Frequency response ± 0.5 dB: dc - 100 kHz

4PR

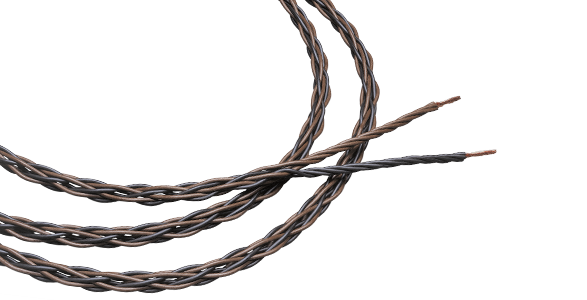

The original Kimber Kable. Four copper conductors in PE dielectric per polarity for 13AWG (2.255mm²) Often bought as an initial launch into the “high end” and kept because it’s just too good for the money. 1/3rd the signal loss of conventional 13AWG parallel conductor designs. accuracy, pacing, proper imaging are the signature sounds of 4PR.
