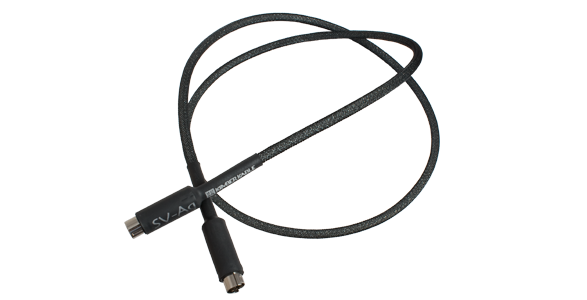

S-Video Ag

Connector Options

  • S-VideoS-Video

Basic Electrical Specifications

S-Video Ag

DUT: S-Video Ag 1m terminated.

(Cp) parallel capacitance: 62.40 pF @ 20 kHz
(Ls) series inductance: 0.818 µH @ 20 kHz
(Rdc) dc loop resistance: 0.201 Ω
(Xt) total reactance: 0.0051 Ω @ 20 kHz
Crosstalk @ -30dB 6.0 MHz
Frequency response ± 0.5 dB dc - 20 MHz

S-Video Ag

Kimber Kable's high-performance S-Video cable utilizes MST geometry with two balanced, electrically isolated signals to improve upon traditional coaxially based S-Video cables. Our S-Video series takes full advantage of the Y/C higher resolution format and offers a surprising improvement in the picture quality received from your VCR, DVD player, or DBS satellite. Video images are rendered with greater sharpness and clarity, yet become visibly smoother and more relaxing. S-Video is available in two models: SV-Cu containing Hyper-pure copper wire and SV-Ag offering the refined performance of the finest quality silver.
