GQ Mini Cu

Connector Options

  • 1/8 Mini Standard1/8" Mini Standard
  • 1/8 Mini Gold1/8" Mini Gold
  • Ultraplate1/4" Plug
  • UltraplateUltraplate
  • WBT-0114WBT-0114
  • WBT-0102 CuWBT-0102 Cu
  • WBT-0102 AgWBT-0102 Ag
  • XLRXLR

Basic Electrical Specifications

GQ Mini Cu

DUT: GQ Mini Cu 1m terminated with 1/8" mini standard plug and Ultraplate RCA type connectors.

(Cp) parallel capacitance: 61.0 pF @ 20 kHz
(Ls) series inductance: 0.84 µH @ 20 kHz
(Rdc) dc loop resistance: 0.089 Ω
(Xt) total reactance: 0.104 Ω @ 20 kHz
Crosstalk @ -60dB 92.0 kHz
Frequency response ± 0.5 dB dc - 5 MHz

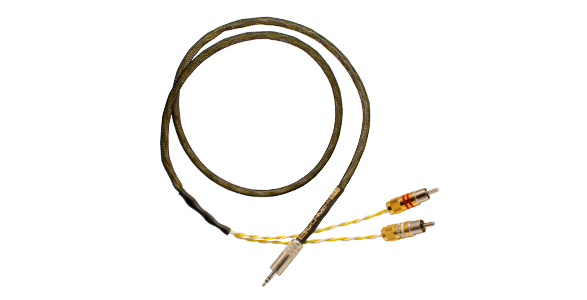

GQ Mini Cu

Today's portable audio formats have definitely found their way into the world of traditional hi-fi. To facilitate the connection of an iPod®, MP3 player, satellite radio or even a computer to your home stereo system Kimber Kable developed the GQ Mini series of multi-purpose cables. The GQ Mini uses the advanced OGQ/2™ geometry (4-wire) braid which keeps the grunge (not the rock and roll type) away and the music powerful. Just connect the 1/8" (3.5mm) mini plug to your portable device (or computer) and the end with the stereo RCA connectors to your home stereo system.

The GQ Mini cable has the additional option of a mini plug on one end and another on the opposite.
