Connector Options
Ultraplate
WBT-0102 Cu
WBT-0102 Ag
XLR
DIN
SME™ 90° DIN
Basic Electrical Specifications
TAK H
DUT: TAK H 1m terminated with Ultraplate RCA type connectors.
| (Cp) parallel capacitance: | 46.9 pF @ 20 kHz |
| (Ls) series inductance: | 0.901 µH @ 20 kHz |
| (Rdc) dc loop resistance: | 0.105 Ω |
| Ground/Shield: | R: 0.061 Ω X: 0.310 Ω |
| (Xt) total reactance: | 0.160 Ω @ 20 kHz |
| Cross Talk @ -60dB | 150.0 kHz |
| Frequency response ± 0.5 dB dc - 8 MHz | |

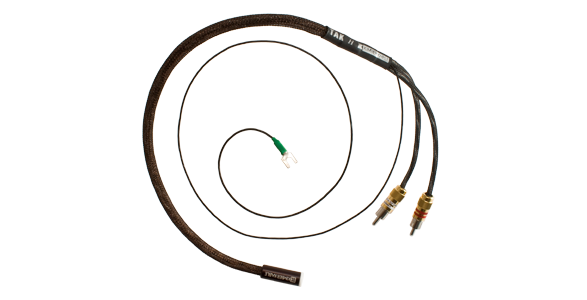

TAK H
Kimber Kable understands that a turntable is an extension of the audiophile's commitment to musical enjoyment. TAK™ preserves all the precious detail that can be extracted from vinyl. OCQ/2™ (Orthogonal GyroQuadratic/2 channel) braiding virtually eliminates electromagnetic interference, radio frequency interference and crosstalk. Proprietary shielding material drastically reduces low frequency hum. Standard terminations are high quality 5-pin DIN to RCA or XLR. Other termination options are available on request.
