RG6 based high purity copper and foamed PTFE dielectric offer increased bandwidth over the V21. Longer lengths are no problem for DV30.

DV-30

PUSH EVERY BIT

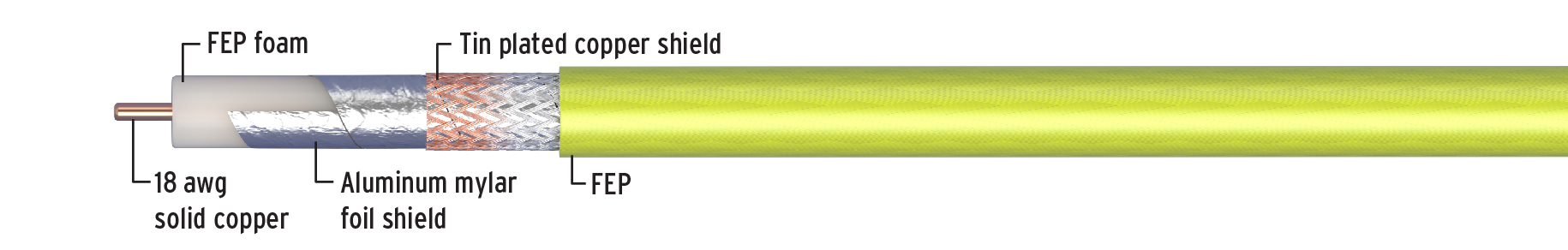

Dual shield
Nitrogen assisted hand soldered termination
Low loss fluorocarbon dielectric
Solid copper center conductor

Connector Options

Ultraplate
BNC Type
"F" Type
WBT-0102 Cu

Electrical Specifications

(Cp) parallel capacitance: 62.50 pF / meter
(Ls) series inductance: 0.505 µH / meter
(Rdc) dc loop resistance: 0.114 Ω / meter
