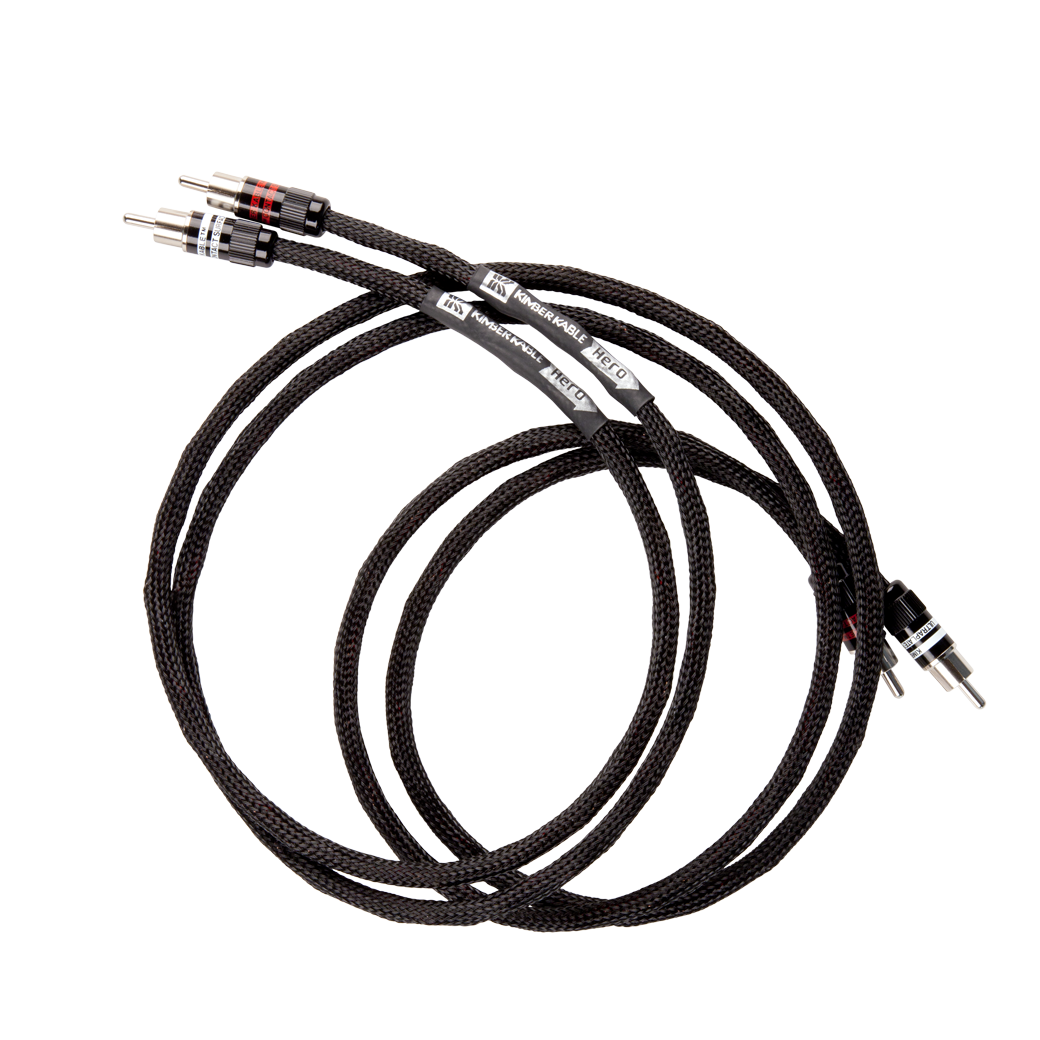

Our best selling interconnect deserves a unique look of its own. Deep, powerful bass with even tonal balance from top to bottom. Boundaries disappear when you use this fantastic imaging cable.

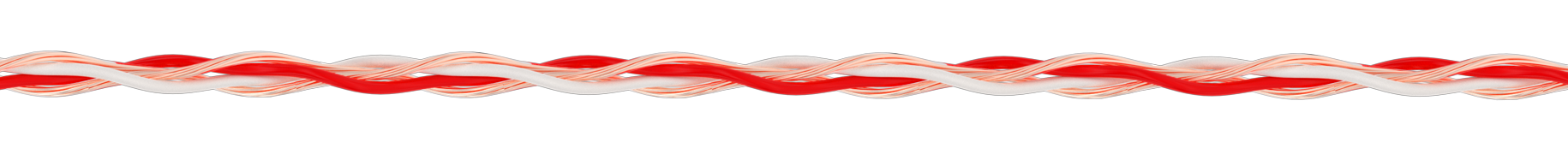

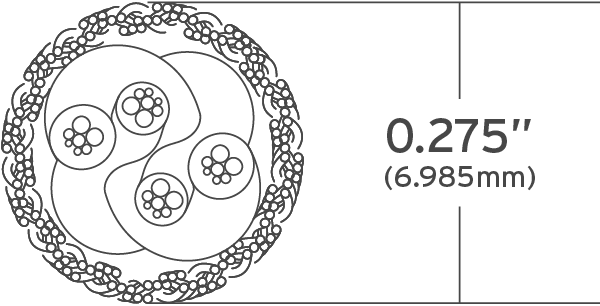

4 wire quadradic braid | |
VariStrand™ copper conductors | |
Nitrogen assisted hand soldered termination | |
Single & dual layer low loss fluorocarbon dielectric |
Ultraplate Black | |
WBT-0114 | |
WBT-0102 Cu | |
XLR |

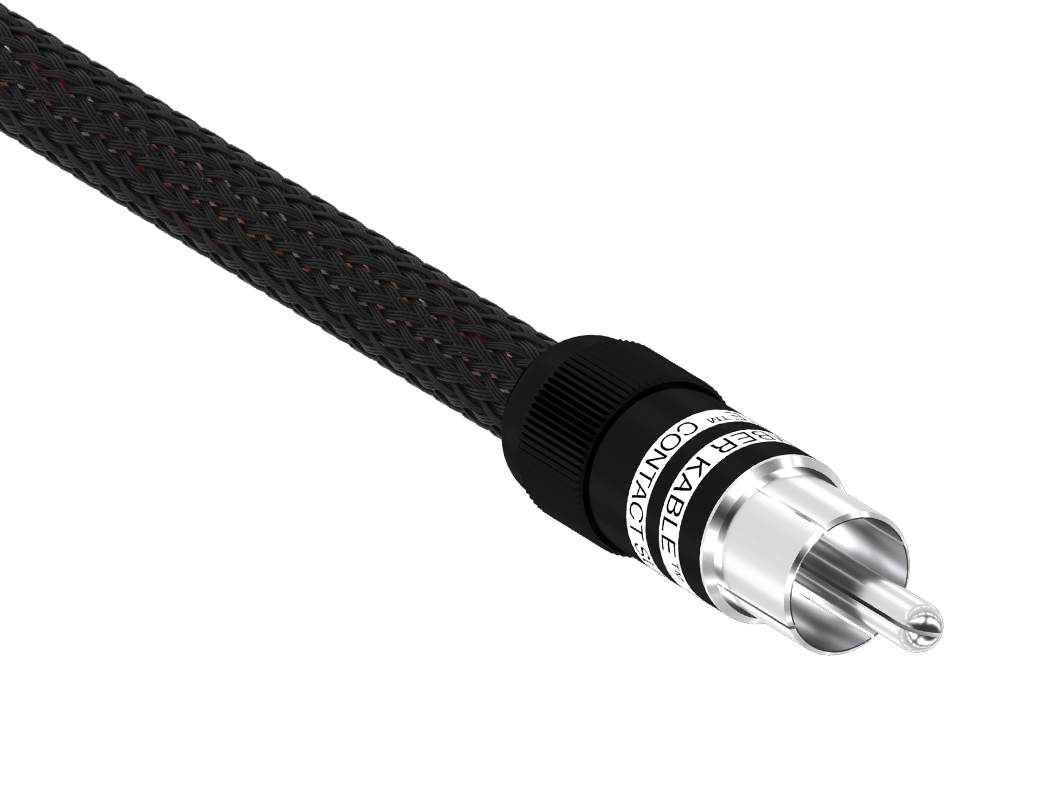

Single-Ended (RCA) | |
(Cp) parallel capacitance: | 78.8 pF / meter |
(Ls) series inductance: | 0.385 µH / meter |
(Rdc) dc loop resistance: | 0.037 Ω / meter |
Balanced (XLR) | |
(Cp) parallel capacitance: | 33.10 pF / meter |
(Ls) series inductance: | 1.13 µH / meter |
(Rdc) dc loop resistance: | 0.081 Ω / meter |
