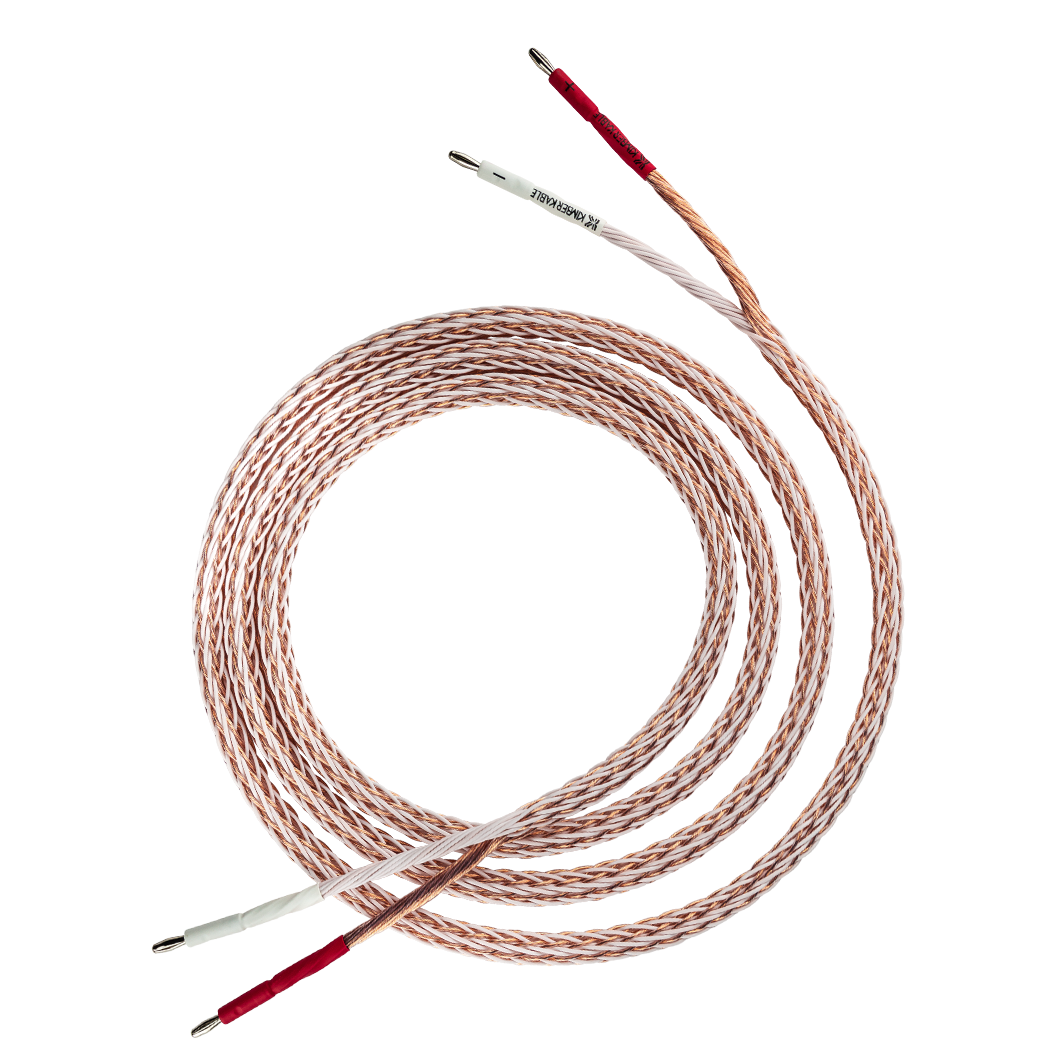

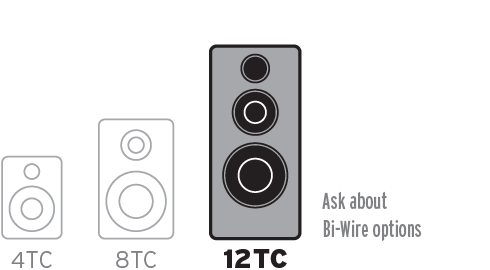

What started out as a simplification of the many 4TC/8TC biwire requests 12TC was born to pump high current amplifier muscle into demanding speaker loads. The larger 24 wire braid of 12TC offers the best of both worlds in combining 4TC delicacy and the 8TC’s increased weight and presence.

12TC

DELIVER TRUTH

Low loss fluorocarbon dielectric

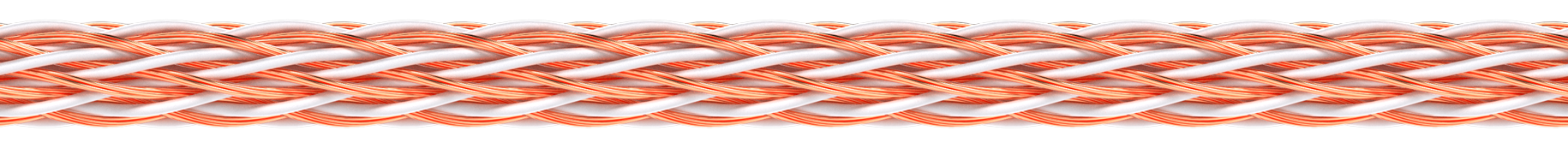

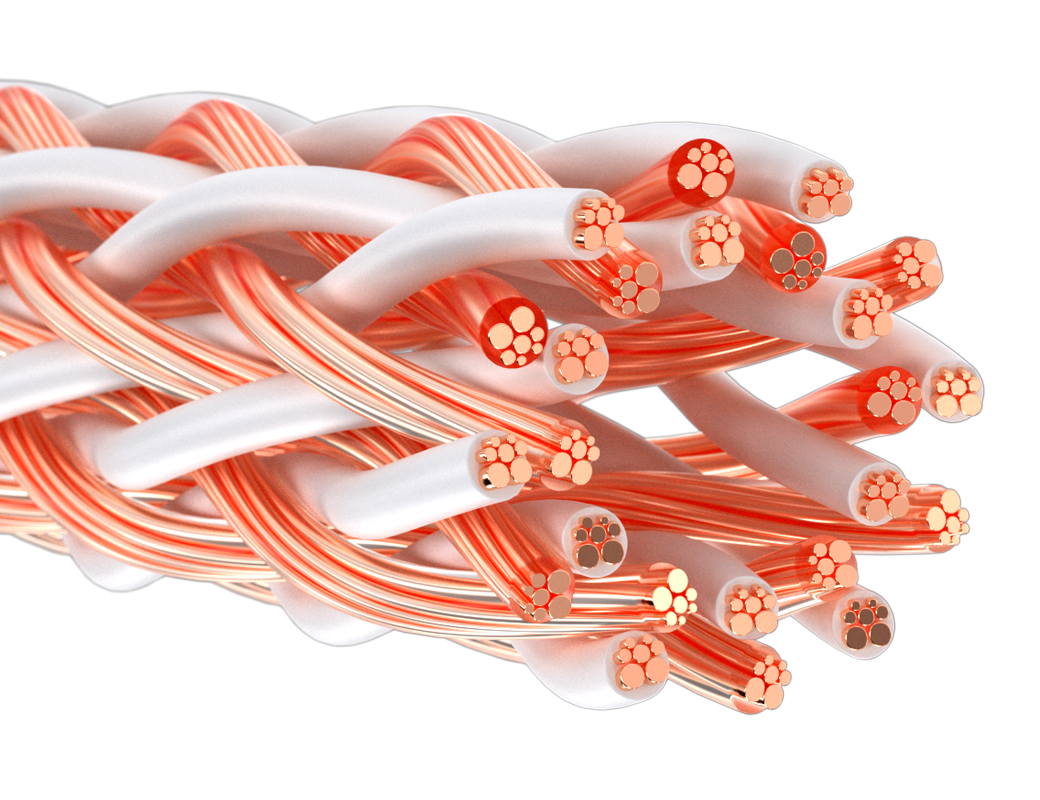

24 wire counter opposed helix
VariStrand™ copper conductors
Nitrogen assisted hand soldered termination

Connector Options

Spade
SBAN
Postmaster 25
Postmaster 33
Postmaster N3
WBT-0645
WBT-0681 cu
WBT-0661 cu
WBT-0610 cu

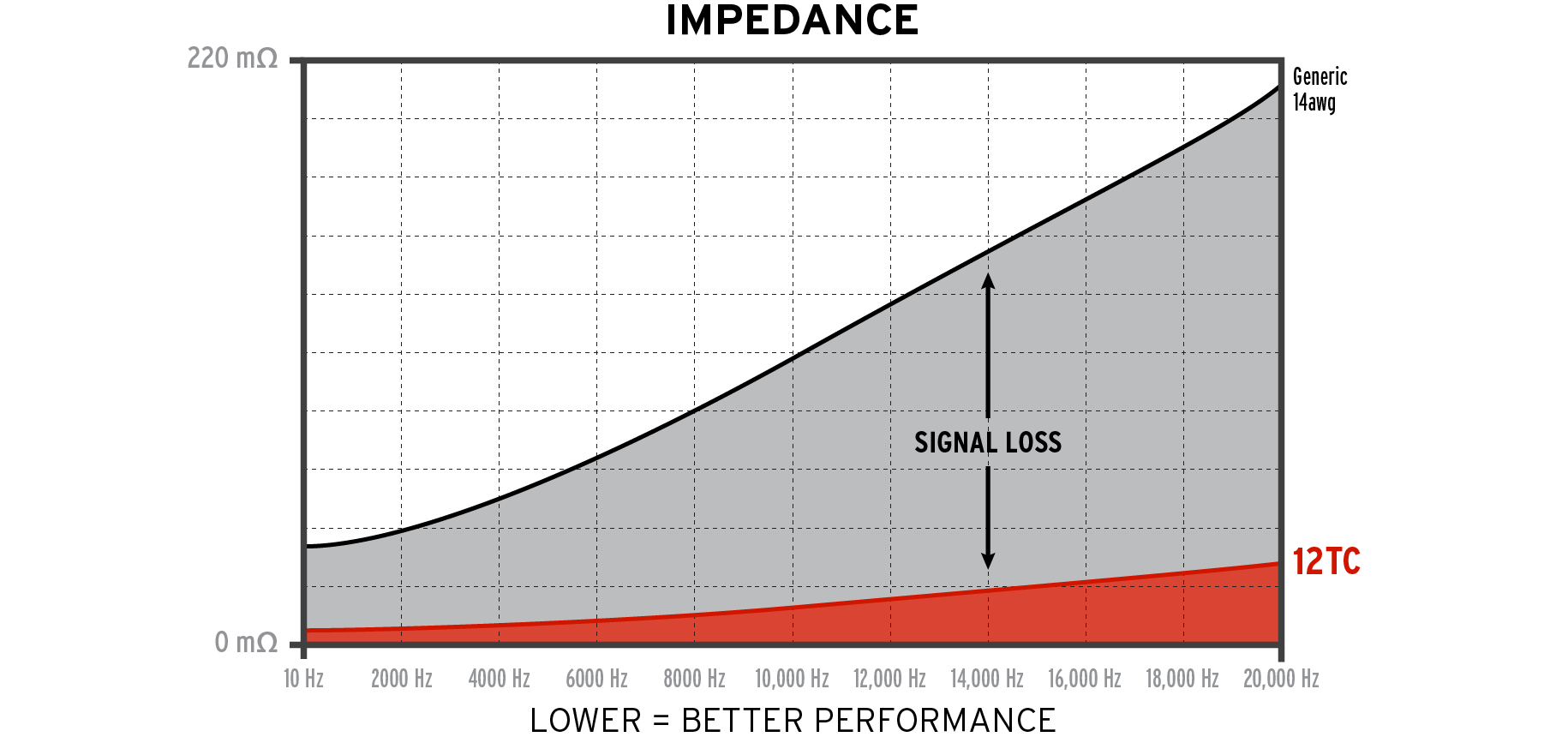

Electrical Specifications

(Cp) parallel capacitance: 494.0 pF / meter
(Ls) series inductance: 0.09 µH / meter
(Rdc) dc loop resistance: 0.005 Ω / meter

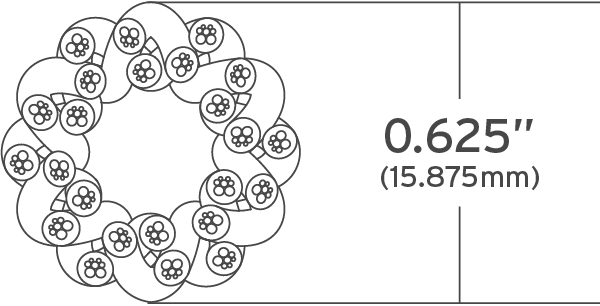

2 x 8AWG(7.46mm²) conductors
