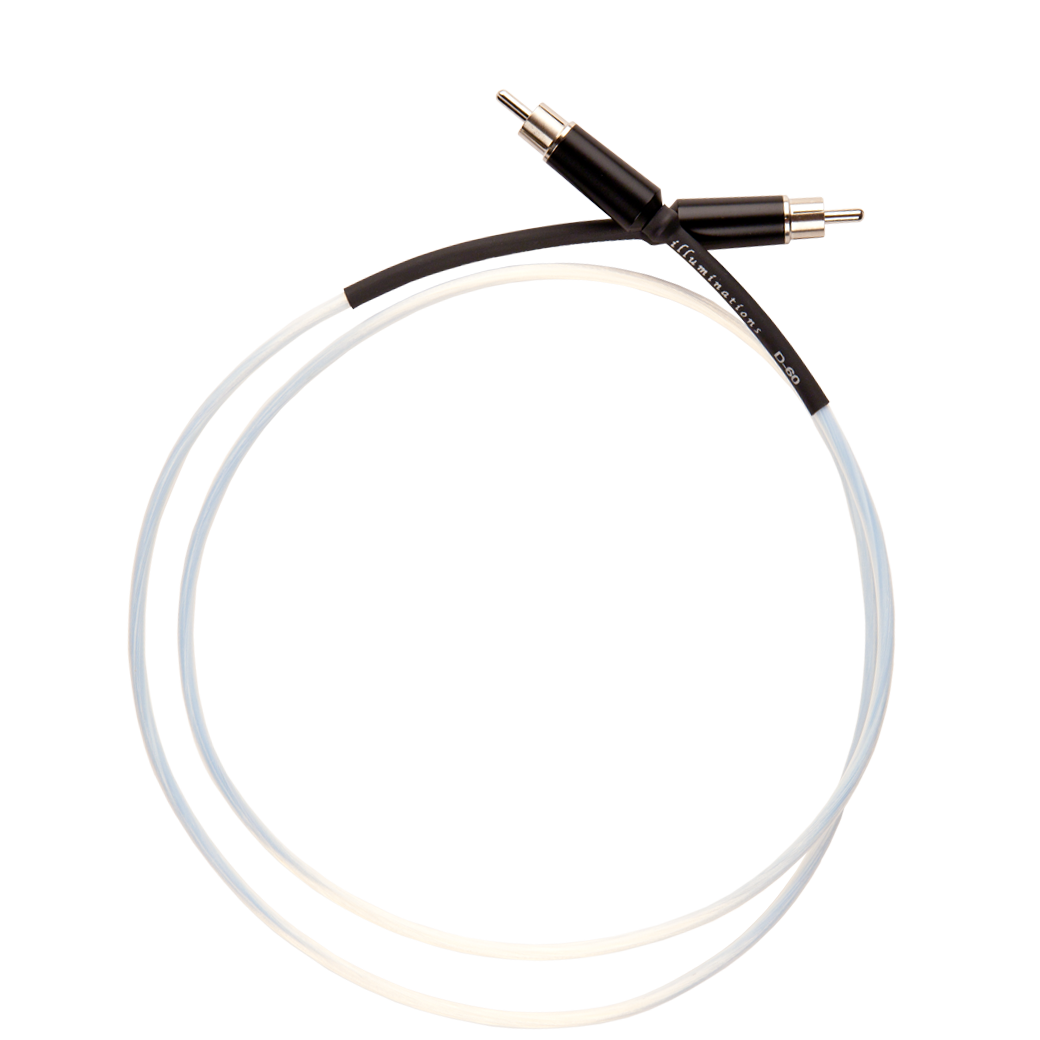

FEP dielectric and pure silver are the only ingredients in this flagship model. A digital cable by which all others are measured. Super low noise floor and incredible bandwidth deliver a huge soundstage with the natural rhythm and pacing of real instruments. A digital cable should disappear and D60 meets the challenge.

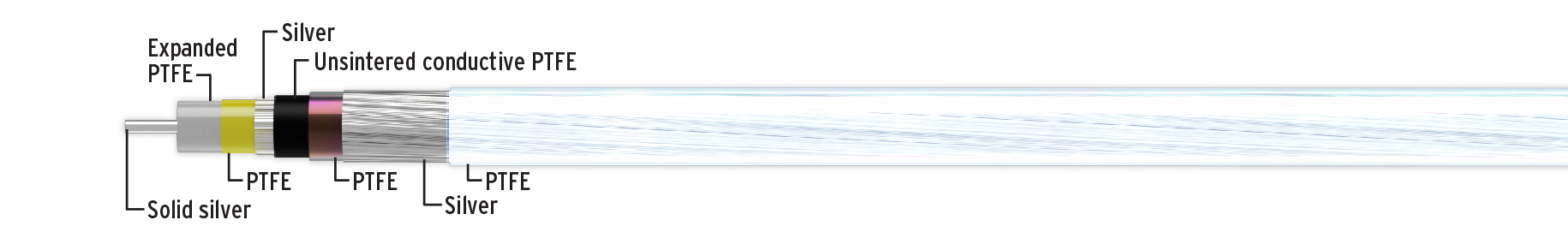

2 helically wound shields | |
Low loss air articulated fluorocarbon dielectric | |

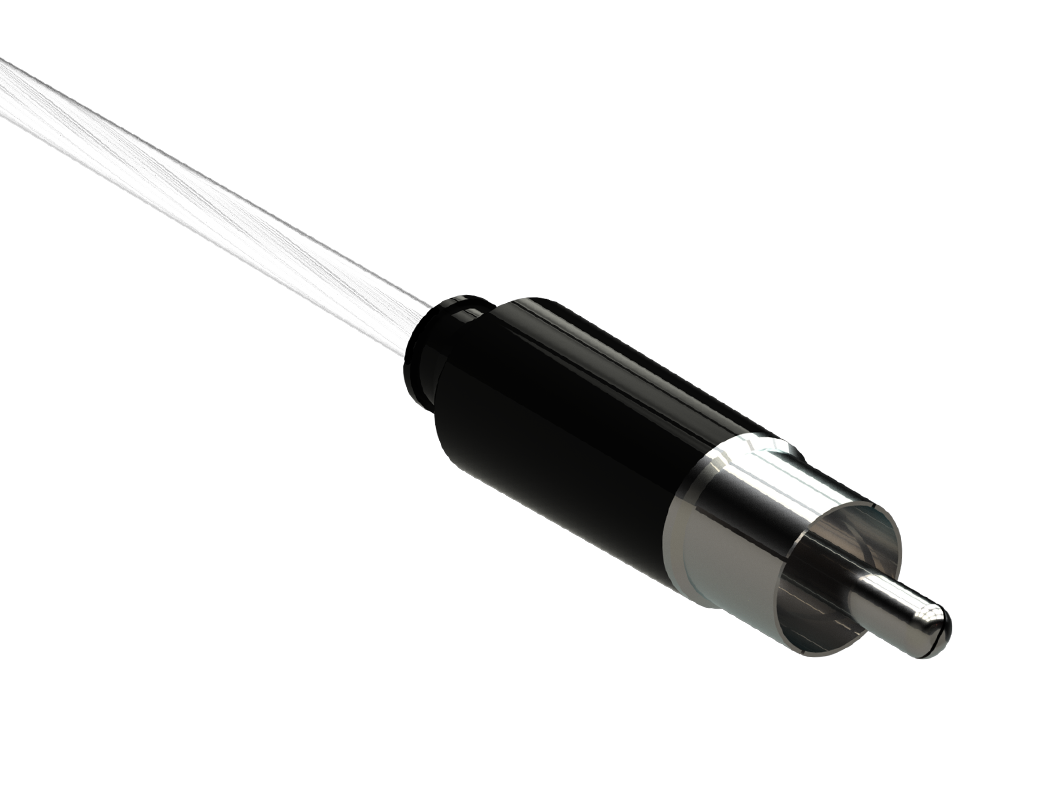

Nitrogen assisted hand soldered termination | |
Solid silver center conductor |
Ultraplate D-60 | |
BNC Type | |
WBT-0102 Ag |
(Cp) parallel capacitance: | 55.20 pF / meter |
(Ls) series inductance: | 0.502 µH / meter |
(Rdc) dc loop resistance: | 0.115 Ω / meter |
