Non-shielded, classic Kimber Kable three wire braided copper interconnect will deliver deep, holographic imaging. Timbre’s has a great ability to pop a central performer forward in the soundstage with clean and clear separation of instruments. Get a glimpse past the what and into the “why” on all your favorite albums.
TIMBRE
INVITE ACCURACY
 |

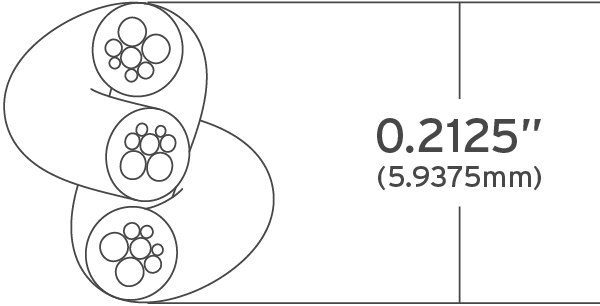

3 wire braid |
 |
VariStrand™ copper condcutors |
 |
Nitrogen assisted hand soldered termination |
 |
Low loss fluorocarbon dielectric |
Connector Options
 |
Ultraplate Black |
 |
WBT-0114 |
 |
WBT-0102 Cu |
 |
XLR |
Electrical Specifications
| Single-Ended (RCA) | |
| (Cp) parallel capacitance: | 62.10 pF / meter |
| (Ls) series inductance: | 0.493 µH / meter |
| (Rdc) dc loop resistance: | 0.057 Ω / meter |
| Balanced (XLR) | |
| (Cp) parallel capacitance: | 45.80 pF / meter |
| (Ls) series inductance: | 1.00 µH / meter |
| (Rdc) dc loop resistance: | 0.0822 Ω / meter |
