RG59 based copper cable with PE dielectric. It’s just ones and zeroes right? Wrong! Digital cables can have a huge impact on overall system performance. V21 will deliver black background levels wherein the original signal can now have free rein to transmit unimpeded.

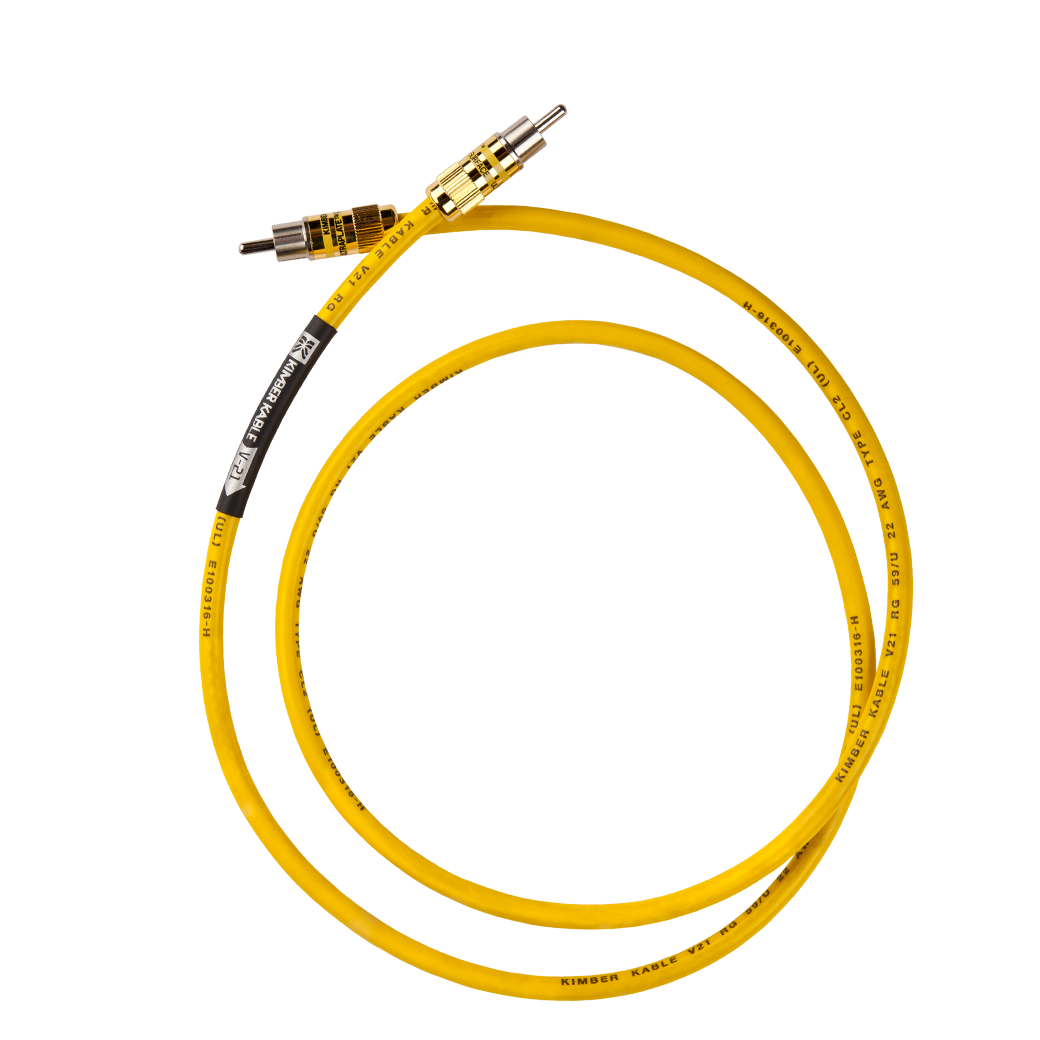

V-21

PUSH EVERY BIT

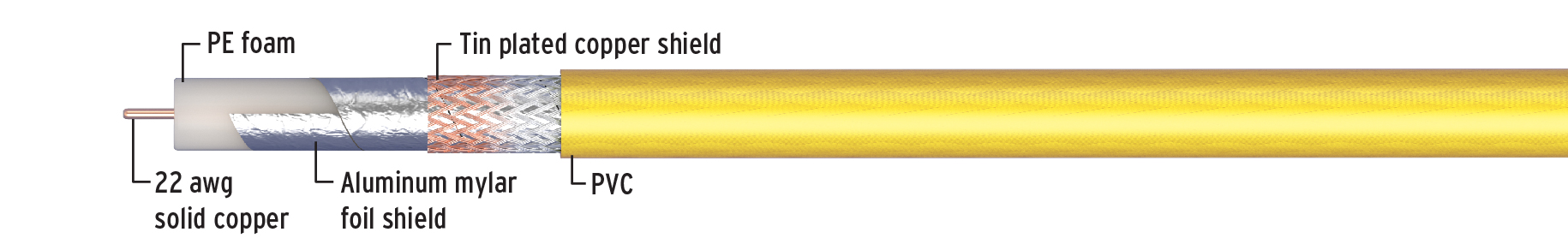

	Aluminum mylar shield
	Polyethylene foam dielectric
	PVC outer dielectric
	Nitrogen assisted hand soldered termination
	Solid copper center conductor

Connector Options

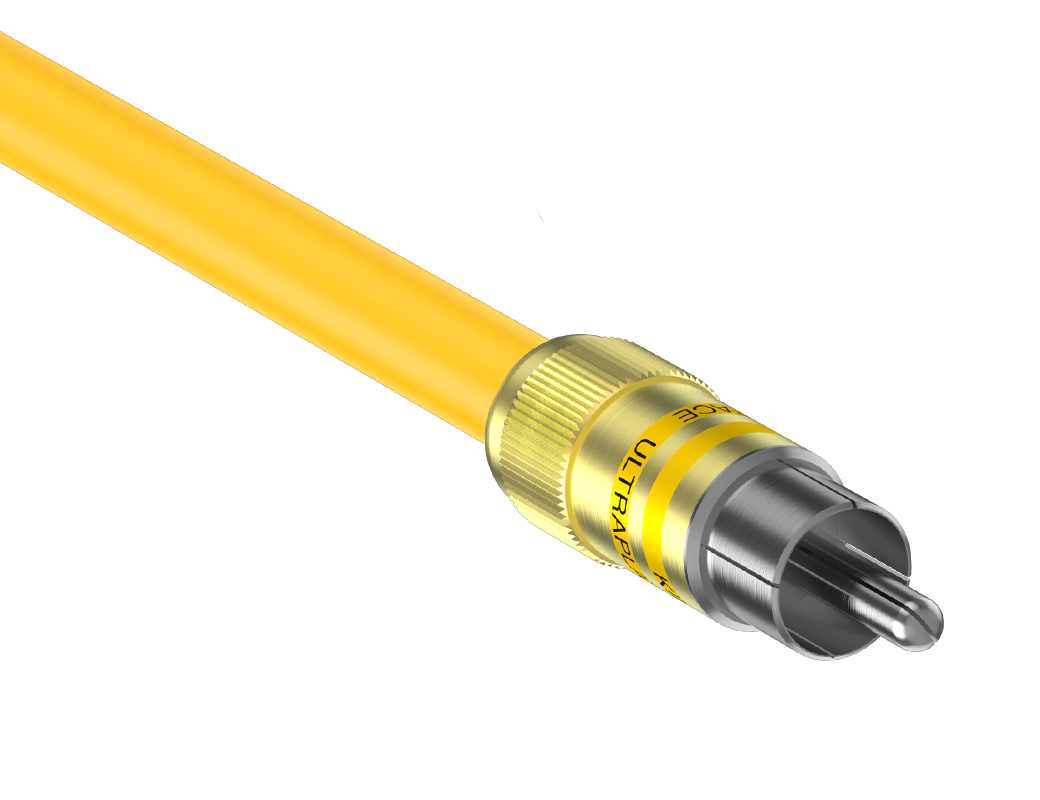

	Ultraplate
	BNC Type
	"F" Type
	WBT-0102 Cu

Electrical Specifications

(Cp) parallel capacitance:	60.10 pF / meter
(Ls) series inductance:	0.487 µH / meter
(Rdc) dc loop resistance:	0.164 Ω / meter
